Some of the 2000 Series Key Features

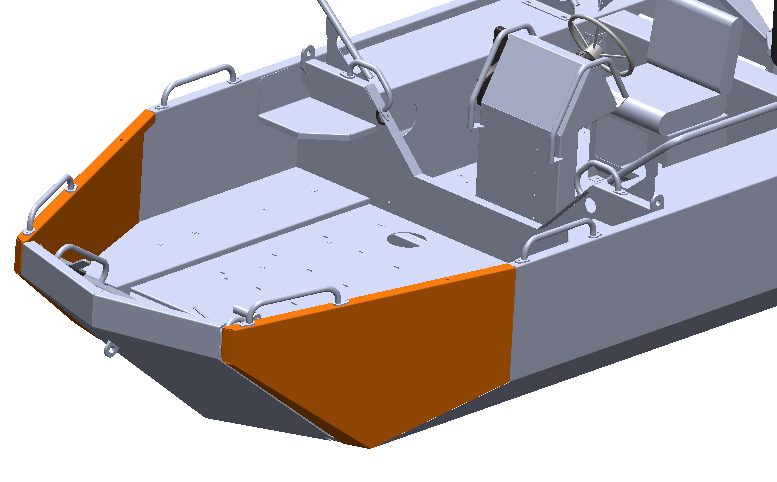

Easy Reach Rescue Zone (ERRZ)
Purpose built rescue zones at the bow, featuring a thin, vertical, freeboard that allows for the crew to easily reach a person or object in the water. These zones are conveniently positioned next to the Ramp / Step Bow Door.
Additionally, all our hulls boast an easy-to-grab gunwale that people in distress can hold to.

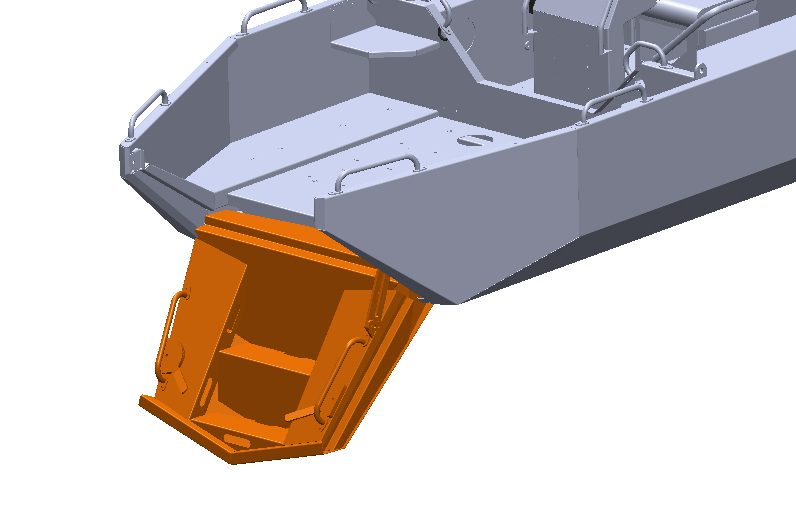

Ramp / Steps Bow Door
Lowers well bellow the surface, allowing divers to easily step back on board. Simply operated by a lever, lockable in 4 positions to also use as ramp to slide a floating stretcher on board.

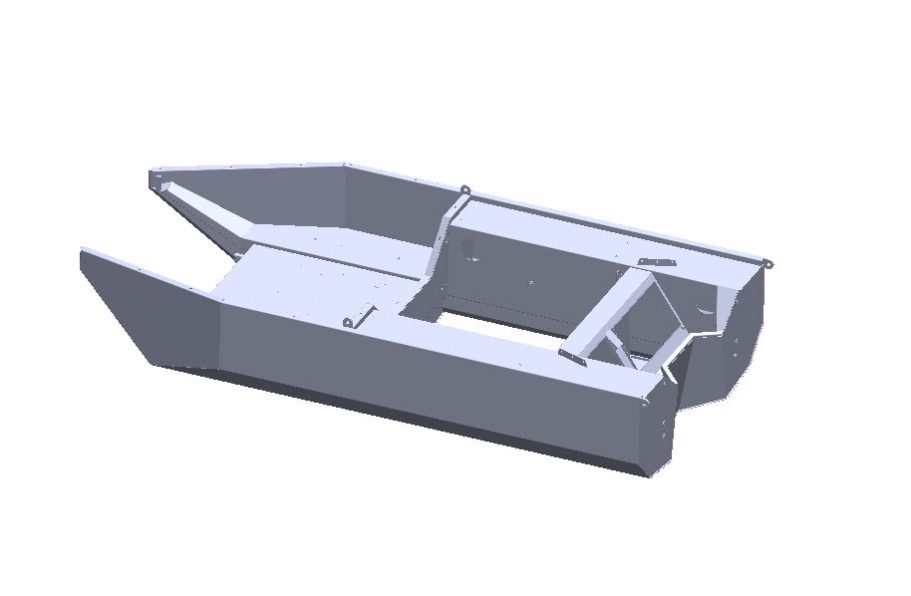

Multi-Compartment Hull
Our 2000 Series is based on 3 sizes of fully welded multi-compartment 5052 marine grade aluminum hulls. Easy and quick to repair if something happens (tape it temporary to finish the mission, get it welded later).
Interchangeable accessories can be mounted at strategic locations to create the version the fits your needs. No need to worry about the drain plug(s) when launching in a hurry, our cockpits and bow are self-bailing.
Most Popular Versions

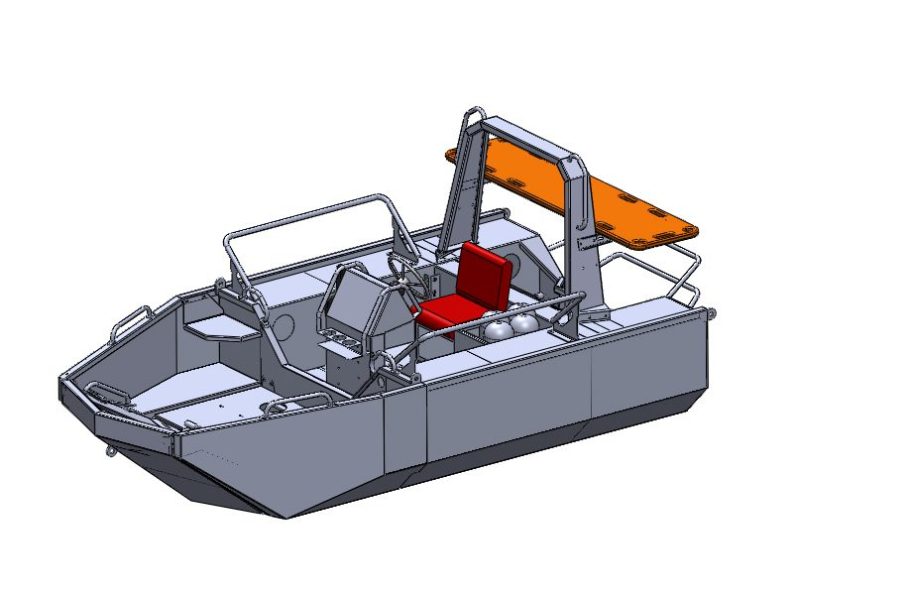

Rescue Version
Configured with the bow free of obstacles, the rescue crew have easy access to the two "Easy Reach Rescue Zones" and the "Bow Door". The floating stretcher (carried at the back of the arch) can be hauled on-board using the ramp door and set across in the bow.
Plenty of seating for the rescued is available on the gunwales. Corner seats in the bow provide seating for the crew.
Diving tank storage baskets can be added on each side of the operator seat.

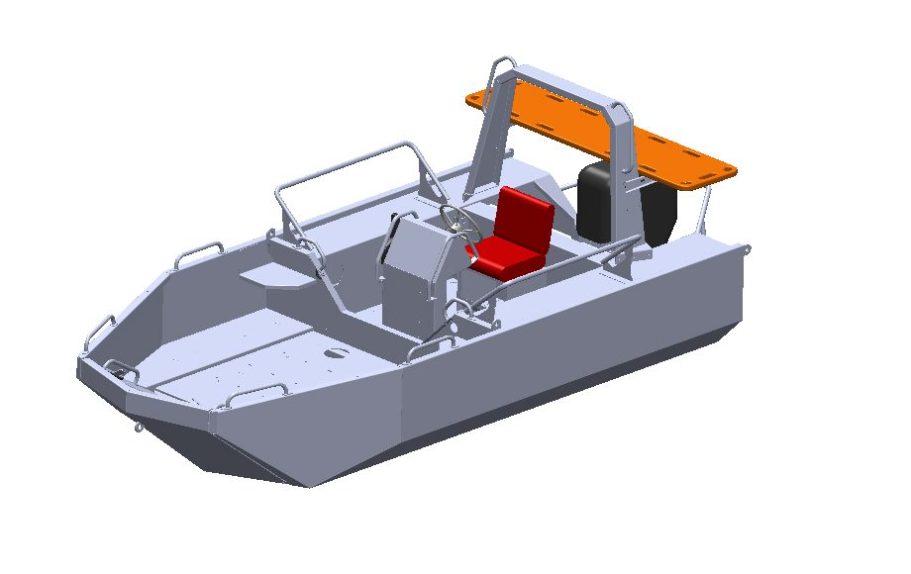

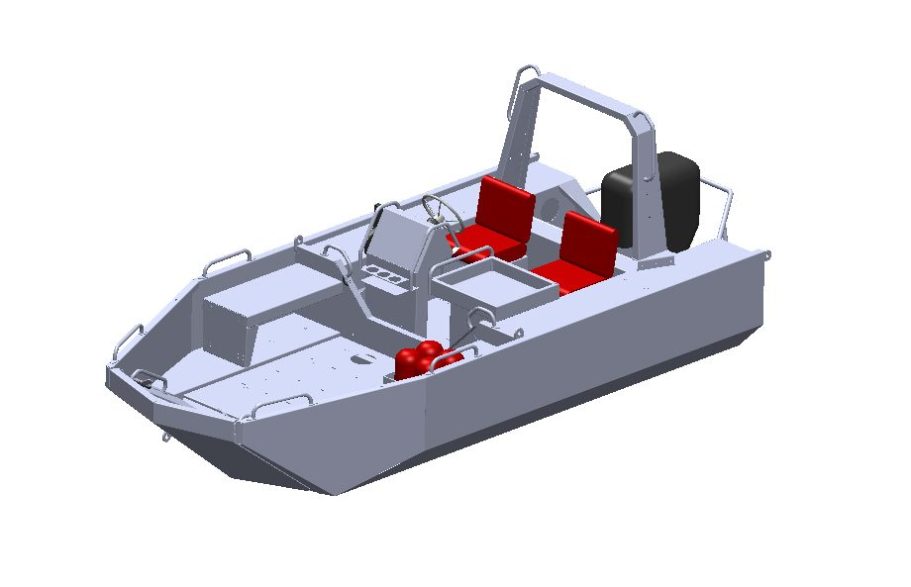

Search Version
This configuration can be used for rescue, but it is optimized for search operations with diving / ROV operation involved.
The cockpit area is equipped with the operator seat and an ROV operator seat and console (table).
The bow can be equipped with long bench seats, or short bench seats with tank basket (or a combination of both).

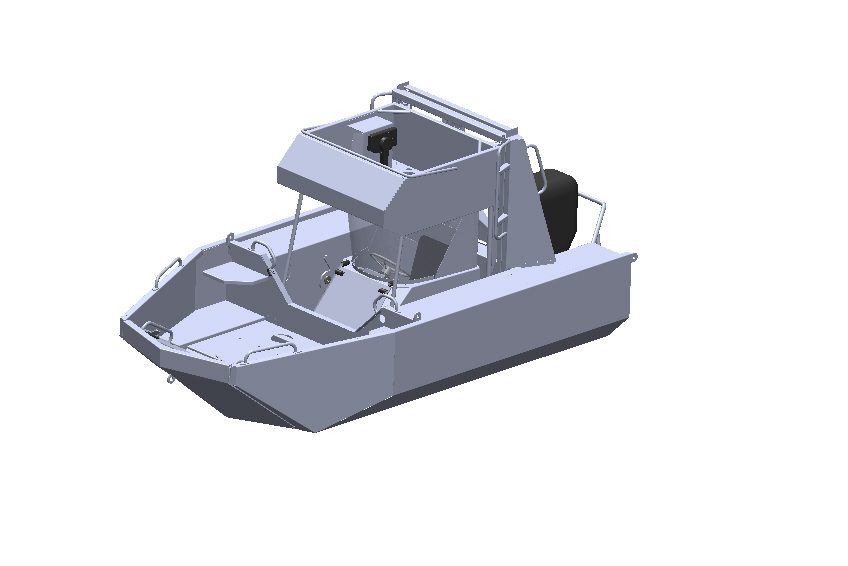

Dry Diver Version
This one is simply amazing!
Imagine having an underwater view in person. Quicky scan the dept for what you are looking for, observe divers in action, have a visual on your ROV, and more!
One person and two person dive PODs are available.
The bow can be configured in many ways, open on the 2130, seating option on the 2150 and 2170.
Accessories

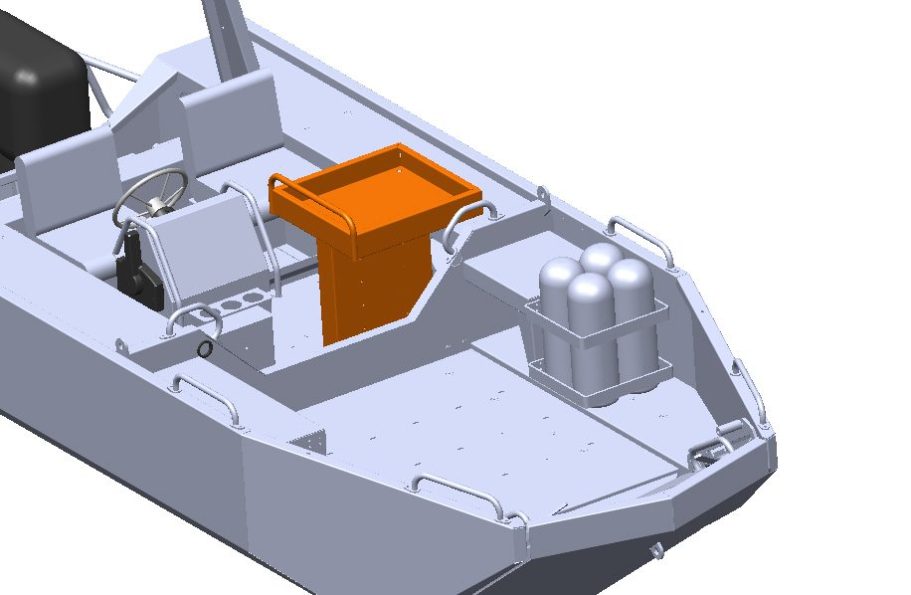

ROV Console
Standard on the Search versions, this table console offer a proper height flat surface for the ROV and accessories to be transported, prepared, and operated from.

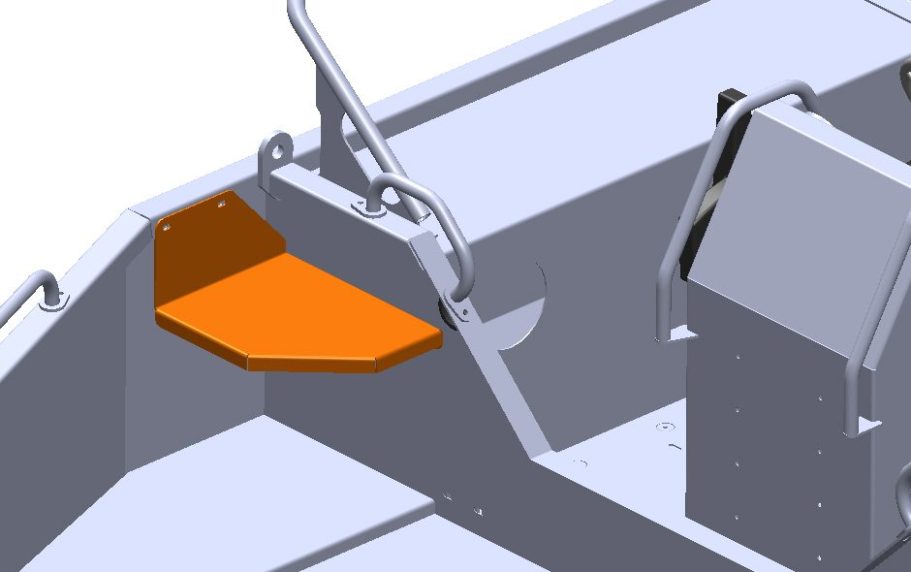

Corner Seats
These small corners seats offer a basic seating option without taking much space.
Bench Seats
Our Bench Seats are available in short or long versions, the short version allows for a tank basket to be mounted at the end.

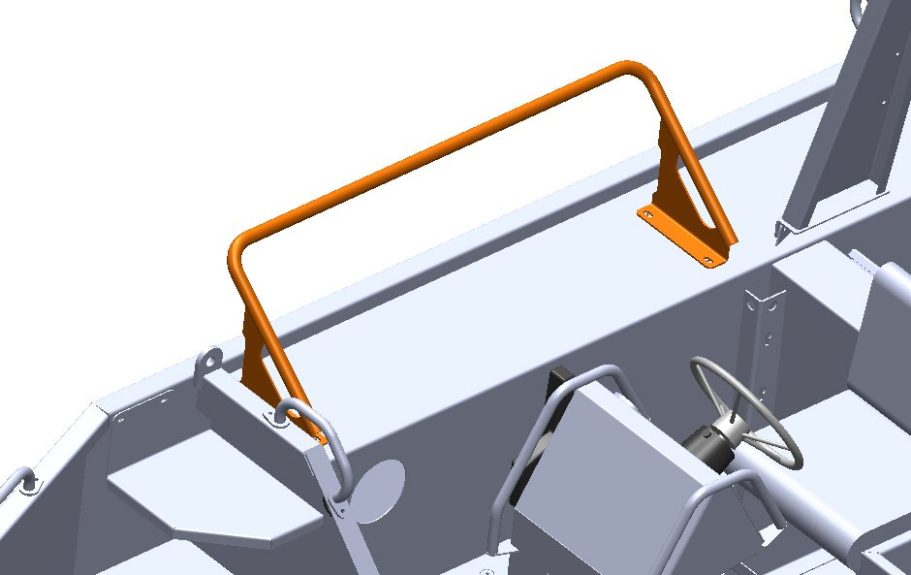

Side Rails
Available short or long, allows 2 to 4 person to safely sit on the gunwales in certain configurations.

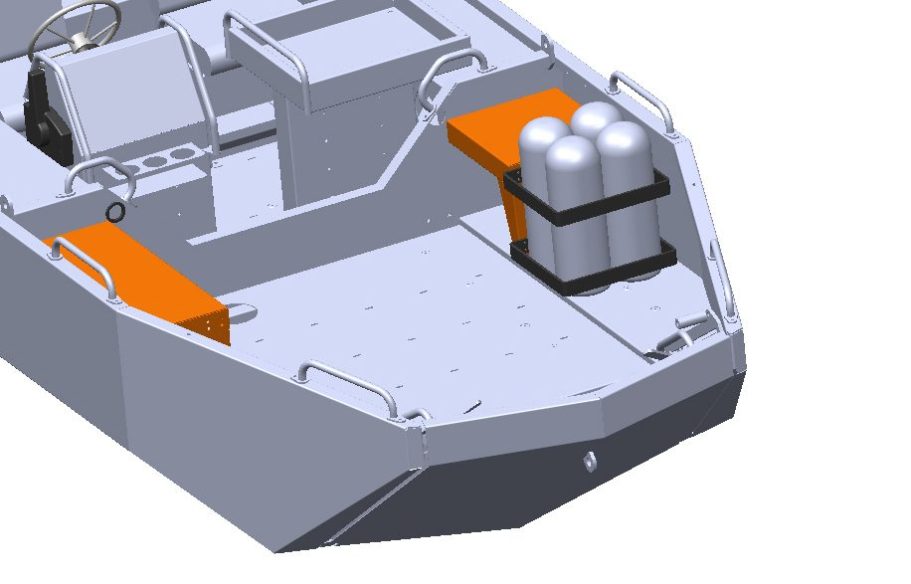

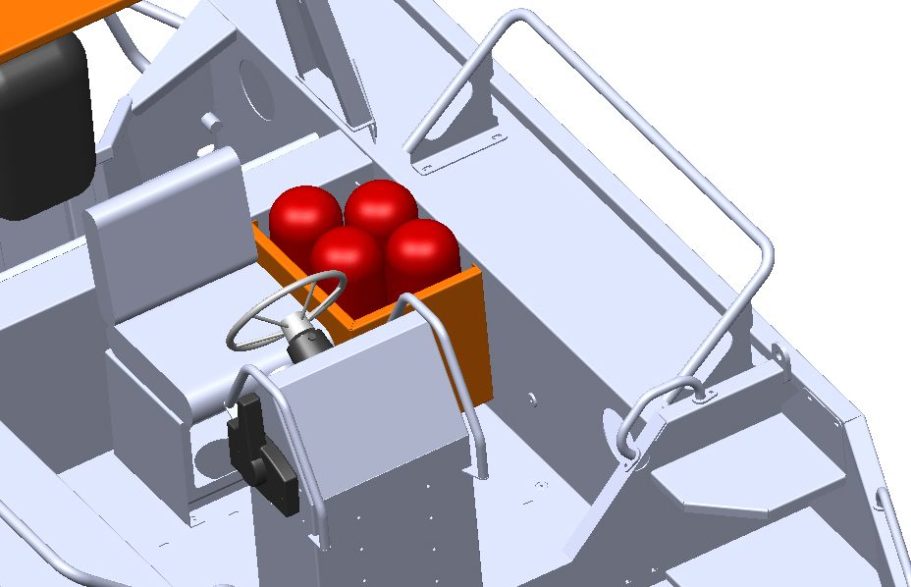

Diving Tank Baskets
Available for the short bench seat, or as corner baskets for the version with center console arrangement (fit both sides).
Floating Stretcher
A third party floating stretcher with supports brackets is compatible with all configuration except DRY DIVER POD and ELEVATOR (standard on the Rescue versions). The ramp built-in the bow drop door allows easy loading.

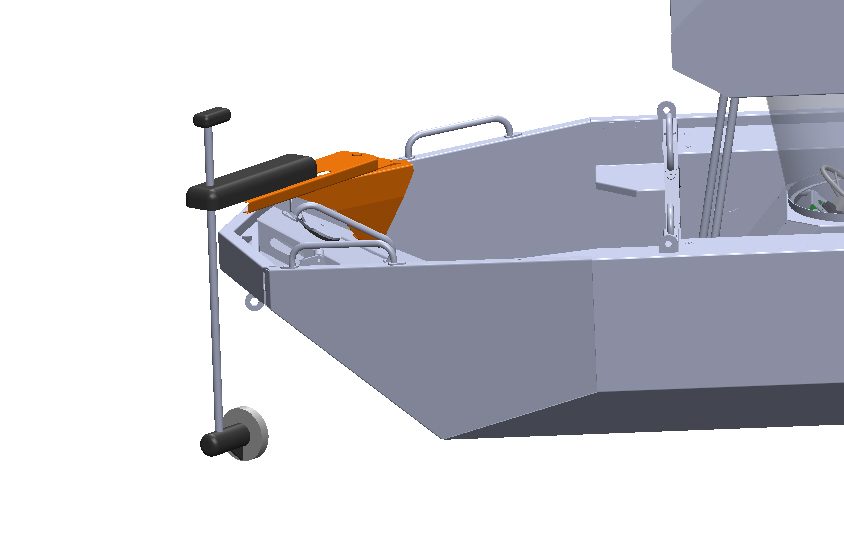

Self-Steering
This package includes a swivel trolling motor mount, a chart plotter, and a trolling motor. The swivel motor bracket allows for the bow drop door to remain operational. This option is extremely useful when searching an area using the DRY DIVER POD (the trolling motor does the steering while the outboard is maintained in a strait position at low speed.
Fire Pump
A self contained fire pump with a directional nozzle can be quickly installed in the bow of the 2150 and 2170 models (versions with nothing else but corners seats in the bow).
Great for any fire department with a waterfront structures or marina on their territory.

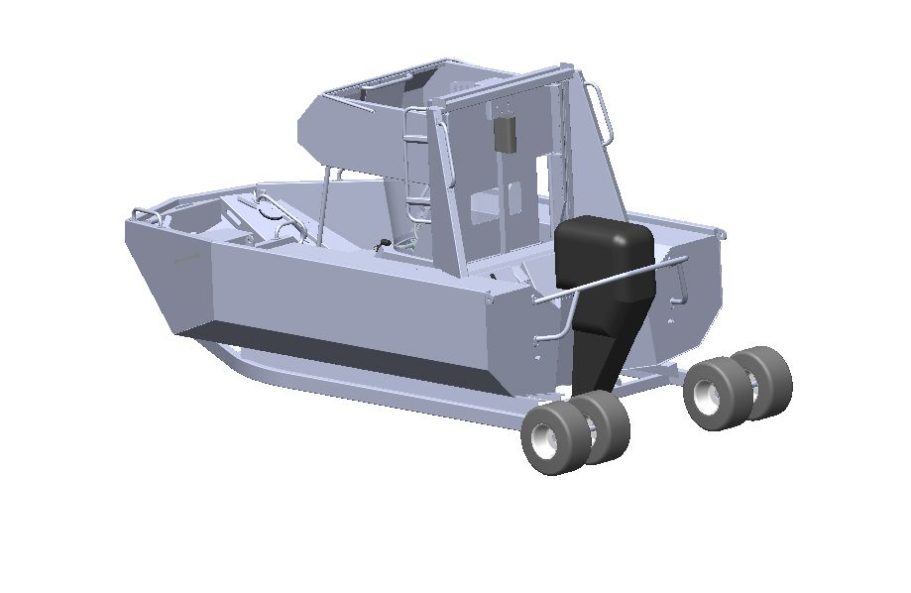

Low Profile Dolly
Our Low Profile Launcher can be used to launch / retrieve all Dry Diver Boats in shallow water. It is particularly useful for boats with the Diver POD option (heavy). It also allows for the 2130 / 2150 to be hauled in an enclosed trailer. The front wheel stays in a track on the trailer, back wheels goes up/down to allow the frame to sit flat on the trailer during transport.

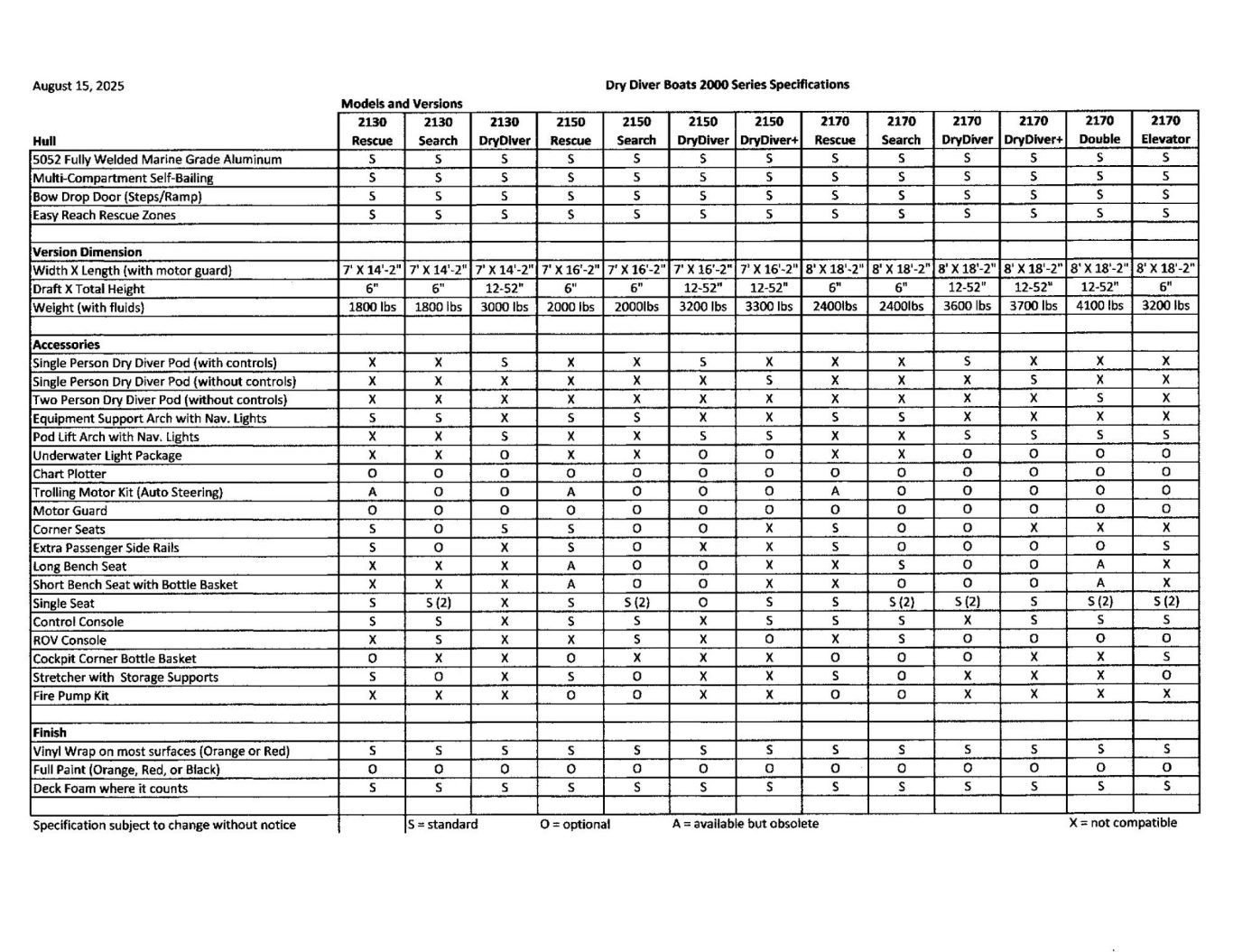

Dry Diver Boats - 2000 Series Specifications
